70W SSB Linear

70W SSB linear HF Power Amplifier

70W SSB linear HF Power Amplifier

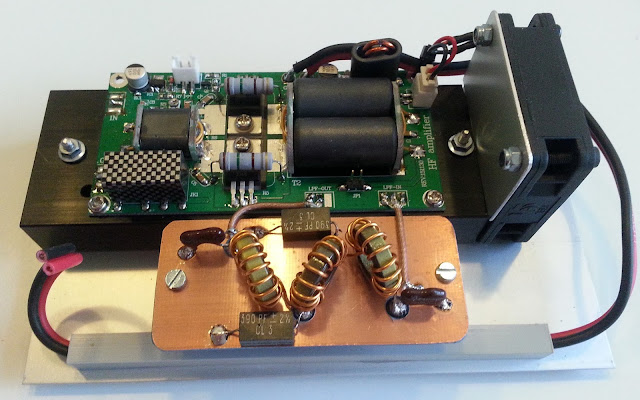

The test was in the original configuration at 13.8V and 5Watt FM input from my FT-817. Max. power was 80 Watt . At 3 Watt input the output was about 50 Watt at 20m. but the modulation was as expected distorded in ssb mode at the recommended 2.7V bias voltage
