Vertical 80m Band Top

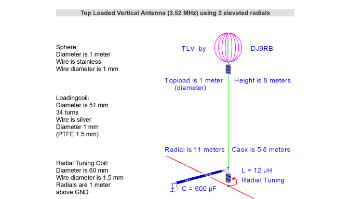

The TLV80 antenna is mounted on a Fiberglas Teleskop Mast height of mast is 8 meters
post 04 Apr 2024
Antenna 80 meter Links →
80 Meter Tower Vertical with Short Radials
The modelled resistance component of the feed point impedance at 3.65 MHz is 80 ohm. It is high due to ground loss and being well off resonance. I chose to simply place a capacitor load in series with tower monopole, chosen to have a reactance of equal magnitude to the inductive reactance of 44 ohm at 3.65 MHz. This requires a capacitor of 1000 pf
