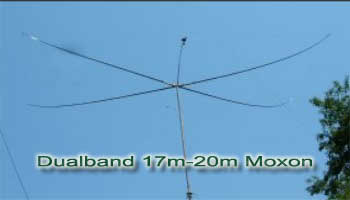

Dualband 17m-20m Moxon

The voltages across the capacitors on 17m are high. At 100W, we're looking at 350V across the 18pF reflector load capacitor and 475V across the 44pF L-network capacitor. At full legal power on 17m, these voltages are about 1400V and 1800V respectively
post 21 Dec 2021


Antenna Moxon Links

42



Homebrew Cobweb or Moxon
Made for 10-15-17 and 20M constructed from 6m Crappie Fishing whips with aluminium bonded to the ends for mounting. These are secured to the base with homebrew 6mm U bolts. The elements are connected to a homebrew 1:1 choke installed in the feeder box

Moxen project
The antenna seems to have a very good front to back ratio, we are using a 88 foot center fed zep as a comparison and after raising the antenna the Moxen beats the zep every time and also hears signals the zep does not

Moxon Antenna Project 17 meter
I use crappie fishing poles, which are 16 foot telescoping fiberglass rods in an X configuration

Moxon for 446mhz
For PMR channels, the results of the calculations are invariant at the mm scale for the 8 channels. In fact, they are identical from 445,927 to 446,115, ie from -0.08 to +0.02 around these
