A Practical Antenna for 160 Metres

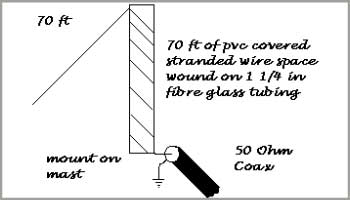

The antenna consists of 140 feet of insulated wire, the first half of which 70 feet is space wound on an insulated tube. I used glass fibre tubing which was to hand, but PVC may be used also
post 22 Mar 2024
