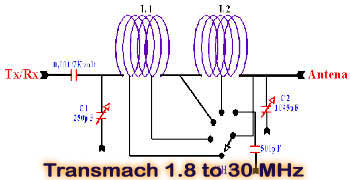

Transmach 1.8 to 30 MHz designed for radio-amateur bands
201
It is a simple L coupler that can be of great service for fixed or mobile traffic.
The above antenna tuner is a multi-type matching system in the same box, which includes L - Pi and T networks. For example, If you can't matching a random antenna with PI-type tuner, just turn the S1 switch in other position, ie T-type and try again. With L - PI - T one-box antenna tuner , we have a very wide matching system for any kind of antenna
This small coupler has a very classic T-pattern and uses an intermediate tap-type choke which allows tuning on all HF bands from 80m to 10m.
A roller inductor with 25 or more turns of 1.2 mm diawire (No 17 AWG) on a 50 mm former would be nice for the 100 Watt level and would easily cover 160m through 10m operation
Icom tunner AH4 with installation of the same for stationary or portable operation, making it easier to use
Take off angle of horizontal antenna For horizontal polarization, the electric field will move sideways on a horizontal plane, while for vertical polarization it will oscillate up and down on a vertical plane
Rx antennas 4Square Rx Vertical Array My frequency design of 1.825 MHz a 90 degrees line would be 33,70 metersinstead of the previously calculated 33,27 m
Calculo da Antena Bazooka A double bazooka antenna is a combination that has a complete coaxial wave multiplied by its velocity factor and a total end-to-end length of 1/4 wave for each side affected by another driver shortening facto
