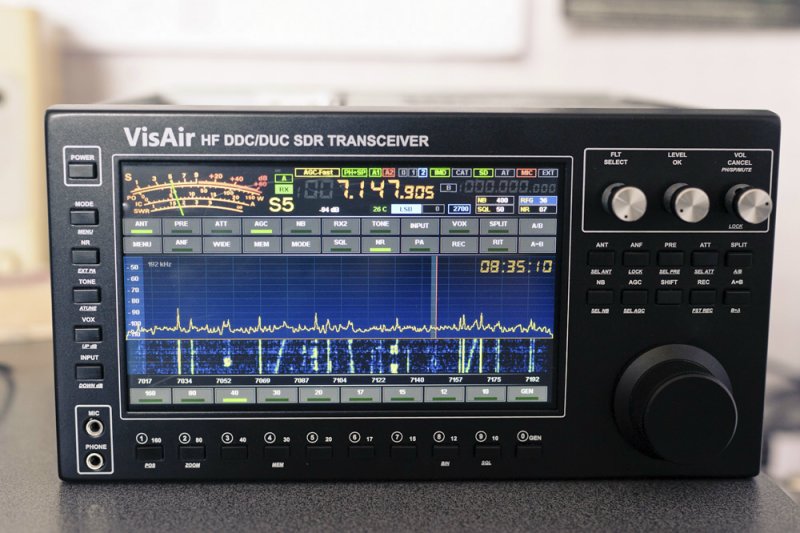

A distinctive feature of the transceiver is the modern DSP data processing technology and information output to a large 7 touchscreen color TFT LCD display with a resolution of 800x480 with a capacitive touch screen.
Minimum signal delays for reception and transmission.
High-quality SSB signal shaping.
The user has the ability to adjust a large number of transceiver parameters.
Today the transceiver of this class is the only one with such a high-quality spectrum analyzer with a waterfall.
The spectrum analyzer displays information in real time.
This allows you to get complete visual information about the correspondents in the analyzer's bandwidth.
The spectrum analyzer has a configurable visual depth and ranges from -150 dB to 10 dB, allowing the operator to tune the spectrum analyzer to suit the current receiving conditions.
An additional survey receiver operating in the 0.01 - 60 MHz band allows you to quickly observe other bands and stations in the first receiver's span.
Independent settings for span, modulation and filter width for the second receiver.
The built-in audio player allows you to record the received stations and, if necessary, make a demonstration of the signal to the correspondent.
The signal pre-distortion function in the power amplifier reduces intermodulation distortion when transmitting in SSB and digital modes.
Built-in antenna tuner and power supply. will allow you to use the transceiver both in stationary conditions and in the field.
Range of received MHz 0.01 - 60 and transmitted frequencies, MHz 1 - 60
Sensitivity, μV 0.1 MDS (500 Hz) -126 dBm
Maximum output power of the transmitter, W 100 (at 50 MHz <20 W)
IMD3 up to 40 dBm with pre-emphasis on
Built-in automatic antenna tuner
Blocking dynamic range in HF range, dB ~ 120
Dynamic range according to IMD3, dB ~ 90
Supply voltage range, ~ 198 ... 240 V 50 Hz (from AC mains)
Supply voltage range, DC 12 ... 14 V (from battery)
Maximum current consumption, A 1.5 (from the alternating current network)
Maximum current consumption, A 20 (from the battery)
RF ADC clock frequency, MHz 122
Digit capacity RF ADC, bit 14
Mode of radiation SSB, CW, AM and FM, digital modes via computer
USB audio input / output. 24 kHz 16 bit
Panorama bandwidth, 12, 24, 48, 96, 192 kHz
Second survey receiver, MHz 0.01 - 60
Number of antenna inputs 2 pcs
Dimensions of the device, mm 300 (controls) х260х130 DхWхH
Weight, kg 7
