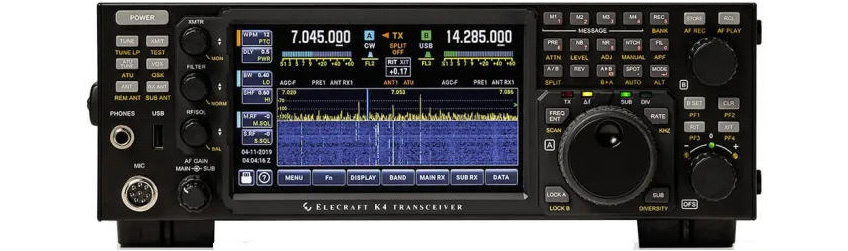

Introducing the Elecraft K4 Transceiver
High-Performance Direct-Sampling SDR
● STANDARD FEATURES
● Size: 4.5”H x 13.5”W, 10” D
● Weight: Approx. 10 lbs
● Supply Voltage: 12-15 VDC
● Current: ~2 A RX, ~18-23 A TX
● Frequency Range: 100 kHz - 54 MHz (VHF/UHF range to be determined*)
● Stablility: +/- 0.25 ppm (TCXO)
● Modes: CW, SSB, AM, FM, Data
● LCD: 7” color; touch & mouse control
● Text modes: CW, PSK31/63, RTTY
● KAT4 ATU: 10:1+ range; 3 ant. jacks
● RX antenna sources: Up to 5
● A-to-D Converter(s): 16 bits

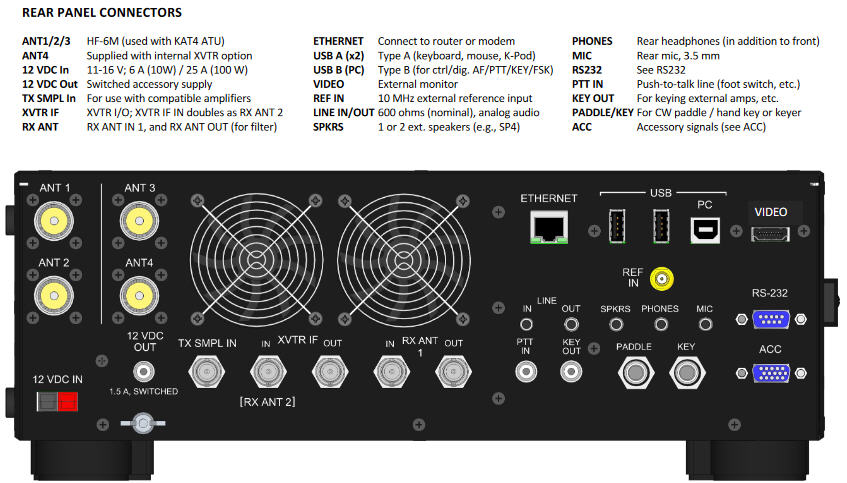

● I/O: USB-A x3, USB-B (two virtual com ports + audio), RS232 (DE9), Ethernet, HDMI. front/rear mic, front/rear phones, LINE in/out, speakers, PTT in, KEY out, paddle, key, ACC,12 V out.
● CW QSK: Silent, PIN-diode switched
● Other: RX/TX EQ, real-time clock,100% remote control including panadapter data, remote antenna switch control*, custom in-box software apps*
Our new K4 doesn’t just harness the latest technology: it blends new tech with a classic user interface to create a transceiver that’s more than the sum of its parts. One that’s sophisticated, yet civilized.
Like you, we’ve witnessed the recent revolution in direct sampling and SDRs. But rather than rush toward change, we’ve been observing — saving the best ideas, testing them, and quietly merging them into a new kind of radio. The resulting modular, hybrid design is innovative and versatile, yet still a pleasure to use.
In particular, operators who’ve used our K3S transceiver and P3 panadapter will find the K4’s controls familiar, and its complement of I/O compatible with their existing station. But they’ll also discover a new level of convenience in the bright, 7” touch display, which combines a large panadapter with three intuitive multi-function controls. Everything you need is at your fingertips, including a unique built-in help system.
Three K4 Flavors
There are three K4 models to choose from: the basic K4; the K4D, which adds diversity receive capability; and the K4HD, which goes a step beyond other direct-sampling SDRs, adding a dual superhet module for the ultimate in blocking and close-in dynamic range.
A basic K4 can be easily upgraded to a K4D at any time by adding the KDIV4 option.
Similarly, a K4D can be upgraded to a K4HD by adding the KHDR4.
The K4 and K4D, like other “pure” direct-sampling radios, do not require crystal roofing filters. Digital signal processing is used to provide advanced demodulation, filtering, and signal display. The K4HD can operate either in direct-sampling or superhet mode. Typically the latter is only needed in the presence of extreme signals.
Modularity that Adapts to Your Needs
Flexibility — now and in the future — was a major design goal for the K4. All of Elecraft’s transceivers embody this philosophy. You can tailor the radio to your current needs, with one of the three models described above as well as other options. But you’ll also be ready to take advantage of new technology that in some cases hasn’t even been invented. Modules are segmented strategically to allow updates at moderate cost, so you won’t have to invest in a new radio every couple of years. Elecraft also listens to its community: the best ideas often translate into new options and software features.
Advanced Remote Control, Host Interfacing, and Display
With the K4, you can operate at the radio itself or from anywhere — whether it’s your living room, back porch, or halfway around the world. One K4 can control another, including streaming panadapter display. you can also use a tablet, netbook, or desktop PC. When operating the radio directly, you can use both the built-in LCD and an external monitor (HDMI), with different content.
Application programmers will benefit from the K4’s rich, yet easy to use command set, including many new commands for setting up panadapter and audio streams.
See here for the Elecraft Brochure.
