SunSDR2 PRO HF, 6m & 2m Transceiver

SunSDR PRO features a high speed LTC2209 ADC for superior BDR, Blocking Dynamic Range, a big heatsink for good cooling, a local oscillator with high stability.

The SunSDR2 PRO comes with a 10 MHz reference input as standard. The user friendly but powerful ExpertSDR2 software is included and future updates are free.

SunSDR2 PRO Main Capabilities

Separate independent receive path based on Direct Down Conversion principle (DDC)

Separate independent transmitter, based on the Direct Up Conversion principle (DUC)

Full or half-duplex mode *

Antenna switch for 2 antennas in HF

10 MHz reference input

Built-in power-meter and SWR-meter in HF band

8 open collector outputs for control of antenna switches, band pass filters or other accessories.

ALC output for external power amplifier**

PTT input for footswitch

CW key input

Headphones output, impedance 8-10000 Ohm

Microphone input for dynamic or electret microphone

Modular microphone input for Yaesu MH-31 or other hand mic with PTT and 3 additional function buttons

Polairty reversal protection

Ethernet LAN interface with galvanic isolation between transceiver and PC

Transceiver’s calibrations are kept inside the device. No need for primary calibration

Remote operation over LAN with CW key and PTT via E-Coder panel, and RX and TX audio via PC.

Remote Control over Wan/Internet using the ExpertSDR Remote System (free software).

* Full duplex mode is supported by the hardware, but is not yet implemented in the software.

Full duplex is a planned feature in a future release of ExpertSDR2.

** ALC functionality is supported by the transceiver’s hardware but is not implemented in the ExpertSDR2 software.

It will be supported in the future ExpertSDR2 software releases.

SunSDR2 PRO Application field

Amateur Radio HF/VHF transceiver

SO2R/SO2V contest radio

MO2R – two operators in Run & Multiplier station applications

Spectrum analyzer with the spectrum scope up to 80MHz

Record frequency spectrum for later playback

Clean operating position controlling radio over LAN

Remote Control via DSL or mobile 4G or 3G connection

ExpertSDR2 Software

The ExpertSDR2 software package is used to control the SDR transceiver.

In receiving mode the software provides two independent receiving channels with up to 312 kHz bandwidth.

Each receiver has its own sub receiver. ExpertSDR2 runs under Windows XP/7/8/10 x32 or x64, Linux Ubuntu x64 and MacOS (MacOS currently beta).

Minimum hardware requirement Intel Core i3 1.6GHz or higher, video card supporting OpenGL 1.5 and RAM 256 MB or more.

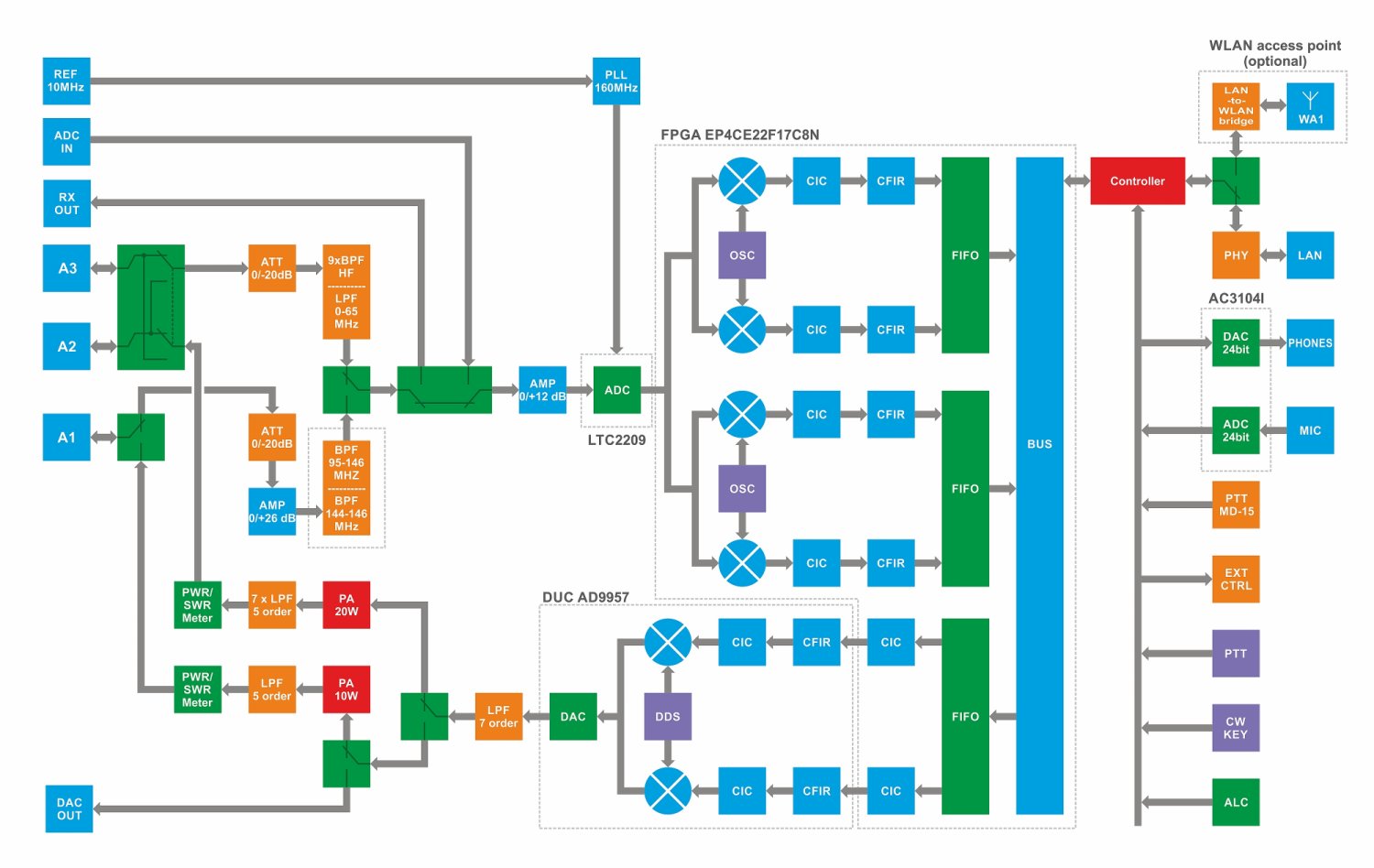

SunSDR2pro Block Diagram

SunSDR2 Specifications

RF ADC, bit @ MHz 16 @ 160

ADC type LTC2209

RX Frequency range HF 0.1 to 65 MHz, VHF 95 to 155 MHz

Independent software receivers 2 + 2 SubRX

Sample rate, kHz @ bit 39; 78; 156; 312 @ 24

Bandscope, MHz 80

RX HF filters, MHz 65 MHz LPF or 9 x octave BPF

RX VHF filters, MHz WideRX: 95-155 or SAW filter for 2M: 144-148

BDR on HF, dB 130

BDR on VHF, dB 114

Sensitivity, uV 0.2

DR IMD3, not less dB 98

RMDR, dB 110

ATT/Preamp, dB -20; -10; 0; +10

VHF LNA, dB +22

RF DAC, bit @ MHz 14 @ 640

TX Frequency range, M All amateur bands 160-6; 2

Output power on HF, W 15 (up to 20)

Output power on 6M, W 15

Output power on VHF, W 7 (up to 8)

TX IMD3, dB 25-30 on HF/VHF

Local oscillator TCXO, MHz +/- ppm 20 +/- 0.5

External 10 MHz oscillator input +

Built-in audio codec, bit 24

RF input/output 2HF, 1VHF (Mini_UHF) ADC IN, DAC OUT (SMA)

PC interface LAN 100 Mbit

DC voltage range in RX/TX, V 10…16/ 12…16

Recommended DC voltage, V 15

Current consumption RX/TX, A 1.25 / 5

Power consumption RX/TX, W 19 / 75

Operating temperature, °C/°F 0…+50/ +32…+122

Dimensions L x W x H, cm/inches 19.0 x 17.0 x 5.0/ 7.48 x 6.69 x 1.97

Weight, kg/lbs 1.5/ 3.31

Specifications are subject to change without notice or obligation and specifications are only guaranteed within the amateur radio bands.

Whats in the Box

SunSDR2 PRO Transceiver

LAN-cable 1.8m for connecting to local network

Power cable 2.0m for connecting to power supply

Two 6.3mm phono male to 3.5mm phono female adapters to connect a headset to the radio

Mini UHF (male) to SO239 (UHF/PL female) pigtail adapter with 30 cm RG58 coax.

SunSDR2 PRO Recommended Accessories

In addition to the sunsdr2pro we also recommend the following accessories :

Slim Power supply 15 V/6A

Noise cancelling headphones and ModMic boom microphone

E-Coder control panel for ergonomic contest or DX operation

Pileup RPI Server for remote control over WAN/Internet

UHF to Mini-UHF adapter

UHF to Mini-UHF pigtail adapter

Spare Power Plugs
