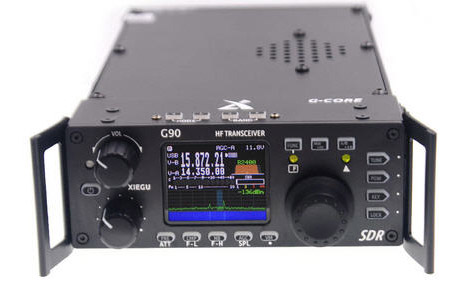

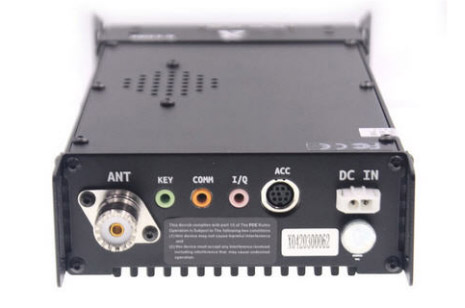

Xiegu G90 HF 20W SDR Transceiver

The SDR structure is based on 24-bit data size at 48kHz sampling rate providing excellent transmit and receive performance and the G90 is highly configurable for a rich user experience. Julian OH8STN from SurvivalTech North walks you through functionality of the Xiegu G90 in this Video. Video OH8STN

Xiegu G90 Features

High performance front end narrowband ESC preselector Frequency range of 0.5~30MHz, SSB/CW/AM 1.8 inch high brightness color TFT LCD screen ±24k bandwidth spectrum display with waterfall Software defined narrowband filter (CW mode: 300Hz) Detachable Front Panel/Display Unit Up to 20W of RF power Built-in wide range automatic antenna tuner I/Q output for interfacing with a PC or XDT1 panadapter

Xiegu G90 Receiver Parameters

RX frequency range: 0.5MHz to 30MHz Modes: SSB/CW/AM RX sensitivity: better than 0.25uV @12dB Sinad (PRE: ON) Machine dynamic range: 90dB Adjacent channel suppression: 60dB Audio output power: 0.5W@ 4Ω Standby current: 750mA @ Max

Xiegu G90 Transmitter Parameters

TX frequency range: all amateur bands 1.8 to 30 MHz Modes: SSB/CW/AM RF output power: 20W Spurious suppression: ≥50dB Carrier suppression: ≥50dB Sideband suppression: ≥50dB Transmit working current: 8A @ Max

Xiegu G90 Antenna Tuner Parameters

Initial tuning time: ≤12s Re-entry tuning time: ≤ 2s

Xiegu G90 General Specifications

Operating voltage range: 12 ~ 15V DC Operating temperature range: 0 ° C ~ 55 ° C Frequency stability: ±2ppm (after 30 minutes of power on) Size: 120*45*210 mm (without protrusions, head unit combination status) Weight: about 1kg

Xiegu G90 Recommended Accessories

XPA125B 100W Solid State Linear Amplifier

CE-19 Expansion Port for easy PC connection

ModMic boom microphone (this adapter needed)

ANjo EFW40-10P Ultra Light 3-Band Wire Antenna

XTRFY SC-1 24-bit high quality USB sound card for digital modes

Pileup Frequency Extension Mod, enables out of band TX

GSOC Panadapter/Data Terminal (available 2020)

GZF-1 Desktop stand with cooling fan

BFK-5 Desk stand framing kit

Deluxe VFO Knob
