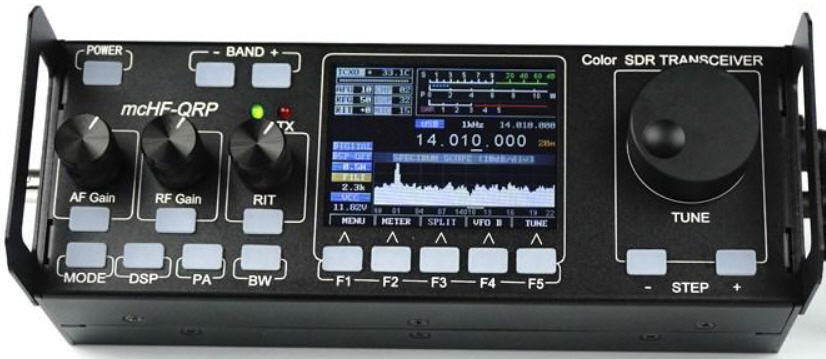

RS-918SSB HF SDR

Main Features

Spectrum Dynamic Waterfall Display

Multiple Working Modes: Receive,Transmit,Tune,VFO,SPLIT

DSP Digital Signal Processing Noise Reduction

Automatic Notch Filter

Humanized Interface Color Display

Receive Fine Tuning Function, Changeable MIC Gain Value

VCC Power Supply Voltage Indication Table

Transmit Signal Strength Display Table

Multifunctional Instrument: SWR Meter, AVD Audio Frequency Meter, ALC Signal Modulation Meter

RS-918SSB Technical Specifications

Frequency Range – RX: 1.8-30MHz TX:All HAM HF BANDS

Operating Mode – SSB(J3E)，CW，AM(RX Only), FM, FREE-DV

TX Power – 5W (Standard, DC 13.8V) , 15W (Full,DC 13.8V)

Receiving Sensitivity – 0.11~0.89μV (RFC 50-20)

Minimum Frequency Step – 1Hz

Operating Voltage – DC9~15V

Antenna Impedance – 50Ω

Frequency Stability – ±1.5PPM @ Power on 5 Minutes (Standard) ; ±0.5PPM if Optional TCXO Used

Product Dimension (W × H × D) – 215×74×62mm（Mounting Bracket Included）

Weight – 623g
