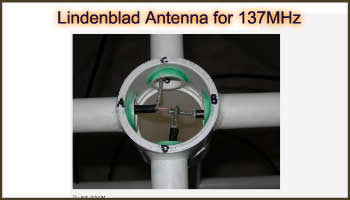

Building a Lindenblad Antenna for 137MHz
I have built my last couple of Lindenblads from lengths of 4mm diameter galvanised steel fencing wire, some standard 300 ohm television ribbon cable, and a few bits of wood and plastic. Another useful feature of a Lindenblad is that its 75 ohm impedance nicely matches into standard 75-ohm TV coaxial cable
