IC7300 External tuner with balun 9:1

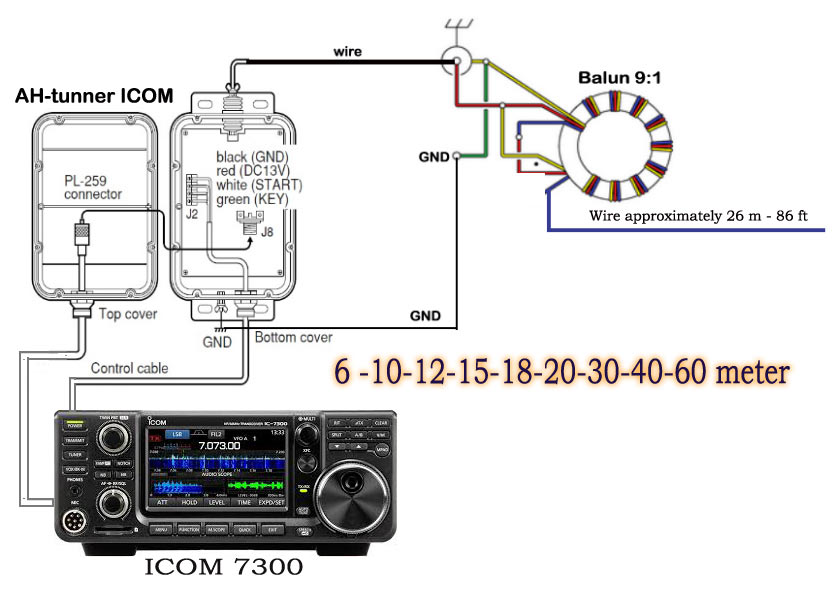

i used an icom 7410, an end fed antenna, with a 9: 1 balun, and tunner homebrew, now i use an icom 7300, with tunner AH icom, balun and antenna remained the same

post 25 Jan 2024
