A antenna for 435 MHz

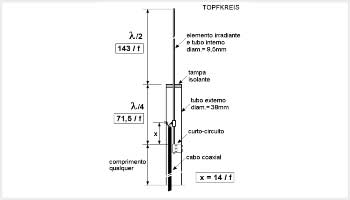

This antenna is nothing more than the coaxial version of the J antenna J pole, see here. It consists of a half-wavelength radiating element, the electrical equivalent of the half-wave dipole, but fed by a tip
