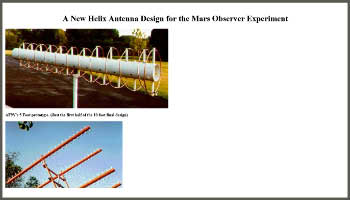

New Helix Antenna Design
Reflector Loop Dia: 10.66" The reflector is positioned 0.375" ahead of the start point of the first helix turn, first 4 Turns: 10.32", Next 7 Turns: 8.68", Last 12 Turns: 8.40
post 10 Jul 2024
