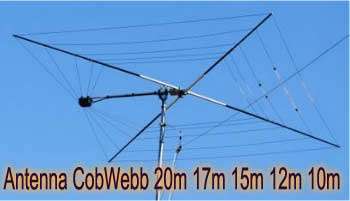

Antenna CobWebb 20m 17m 15m 12m 10m
Balun di corrente su toroide Amidon T200 avvolgere 8 spire sul toroide da un lato ed altre 8 spire dall'altro lato
post 13 Feb 2024
Antenna Cobweb Links →
Antenna CobWebb 20m 17m 15m 12m 10m
Balun di corrente su toroide ( Amidon T200) avvolgere 8 spire sul toroide da un lato ed altre 8 spire dall'altro lato
Antenna project cobweb
After the success of my first cobweb antenna I decided to build a rigid version for my home QTH
Antenna Homemade SP3L CobWeb
My first Cobwebb was the design from G3TPW. And work very well, the only limitation was the small bandwith. After a year I was very happy with this kind of antenna and decided to make a definitive cobweb. This time i built the SP3L variant with an inproved bandwith
20
Balun di corrente su toroide ( Amidon T200) avvolgere 8 spire sul toroide da un lato ed altre 8 spire dall'altro lato
After the success of my first cobweb antenna I decided to build a rigid version for my home QTH
My first Cobwebb was the design from G3TPW. And work very well, the only limitation was the small bandwith. After a year I was very happy with this kind of antenna and decided to make a definitive cobweb. This time i built the SP3L variant with an inproved bandwith
