The 40/30 Pyramid antenna

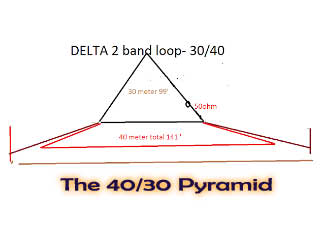

I have something here that I believe is new. If it isn't then that's ok ,I don't use EZNEC or read antenna articles much. I like to innovate. This antenna is an innovation. I have read about a sloping two band Delta loop but it used two feed lines mine uses one. It is called the 40/30 pyramid
post 14 May 2023
