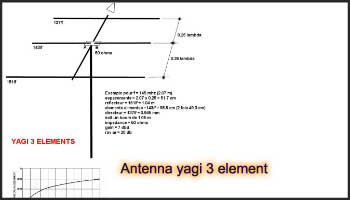

Antenna yagi 3 element
Example for F = 145 MHz2.07m, spacings = 2.07x0.25 = 51.7 cm, reflector fed 151/F = 1.04m, elements alimentes 143/F= 98.6 cm 2 times 49.3cm, director = 137 / F 0.945mm, or a Boom of 1.05m, impedence = 50 ohms, gain = 7 DBD, RAV-AR = 20 DB
post 14 Oct 2024
