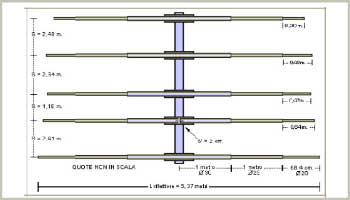

YAGI 5 elementi per 27.600 MHz
The gain is excellent, on average 8.30 dBd 10.45 dB Iso. The forward/rear A/R ratio exceeds 22.5 dB across the entire band. The R.O.S. it is less than 1.04 :1 between 27.4 and 27.8 MHz
