SJ2W Contest Station - 160 antenna

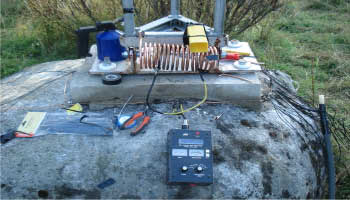

The main antenna for the 160m band is a 39m high vertical. The antenna consist of 29m of WIBE tower sections with an insulated base and a top tube which is 10m long. The antenna is tuned to 50 ohms through a tapped inductor which also makes the antenna DC grounded. The total length of radials are about 3km, each one alteast 1/4wl long
post 03 May 2023

Antenna 160 meter Links →
Linear Loaded Wire Antennas
I have done a lot of research on wire antennas on the internet as well as other places and developed aninterest in linear loading
Loop Antenna Info
I have personally used a 160 meter band Horizontal Full Wave Loop antenna with very good success. I worked all 50 states and several countries with 100 Watts
Multibander sloper
To support an antenna, I have no tower, and only two trees that aren't too close to a house. These trees are only 70 ft 21 m apart, and too small to support anything higher than 33 ft 10 m
Polarized antenna the Linear loaded
This is a vertically and horizontally polarized antenna the Linear loaded 1/4 wave length vertical radiator introduces very little loss
Topband with its wavelenght 160m
Dimensons are explained on the picture. During my initial testing was resonance on 1850kHz
96
I have done a lot of research on wire antennas on the internet as well as other places and developed aninterest in linear loading
I have personally used a 160 meter band Horizontal Full Wave Loop antenna with very good success. I worked all 50 states and several countries with 100 Watts
To support an antenna, I have no tower, and only two trees that aren't too close to a house. These trees are only 70 ft 21 m apart, and too small to support anything higher than 33 ft 10 m
This is a vertically and horizontally polarized antenna the Linear loaded 1/4 wave length vertical radiator introduces very little loss
Dimensons are explained on the picture. During my initial testing was resonance on 1850kHz
