Antenna sloper per 80/160 lunghr solo m. 17,50

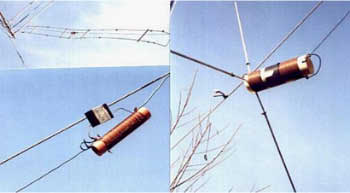

Ho fatto una trappola per gli 80mt con del filo di 2 mm avvolgendo 40 spire su un diam. di 50 mm e spaziate 3 mm interponendo
un condensatore da 100Pf 10 kv. Fatti gli accordi per gli 80, ho aggiunto circa 12 mt di filo e ho fatto Fatti gli accordi per gli 80, ho aggiunto circa 12 mt di filo e ho fatto risuonare il tutto sui 160 mt
post 08 May 2024
