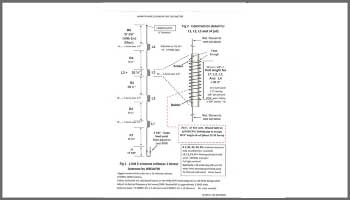

Wire collinear for 2 meters
Get water pipe, CPVC for hot/cold water at your building supply store, it is tannish white and 5/8 inch outside diameter.Cut to 6 inches long for all coils assemblies.Measure in on each end 2 1/4 inches and mark.Measure the spacing between these marks and make sure they are 1 1/2 inches apart.Drill a 1/8 inch hole through each mark all the way through the CPVC pipe
